3-line 6-axle wind blade trailer

A wind blade adapter is a special trailer designed specifically for transporting wind turbine blades up and down hills.

Product Parameter

Brand Name	LIONKAR
size	13000mmx3000mmx3100mm, customizable
Material	Q960Q+Q345B
Load Capacity	50-150 tons
axis	BPW/FUWA, 13 tons 16 tons, American shaft/German shaft
Trapezoidal plate type	800mm, manual with spring assist (high-strength Q960 Q material)
Substrate	8mm Q345B
tire	8.25R20/11.00R20/12R22.5
Traction pin	50#(2″)/90#(3.5″) JOST/Other brands
suspension	Mechanical/pneumatic suspension system
Braking system	WABCO valve
light	led
Outriggers	28 tons JOST/other brands
Rim	9.00-22.5
ABS	Optional
Electrical System	24V 7-way
Accessories	1. A tool box 2. A set of standard trailer tools

Product Introduction

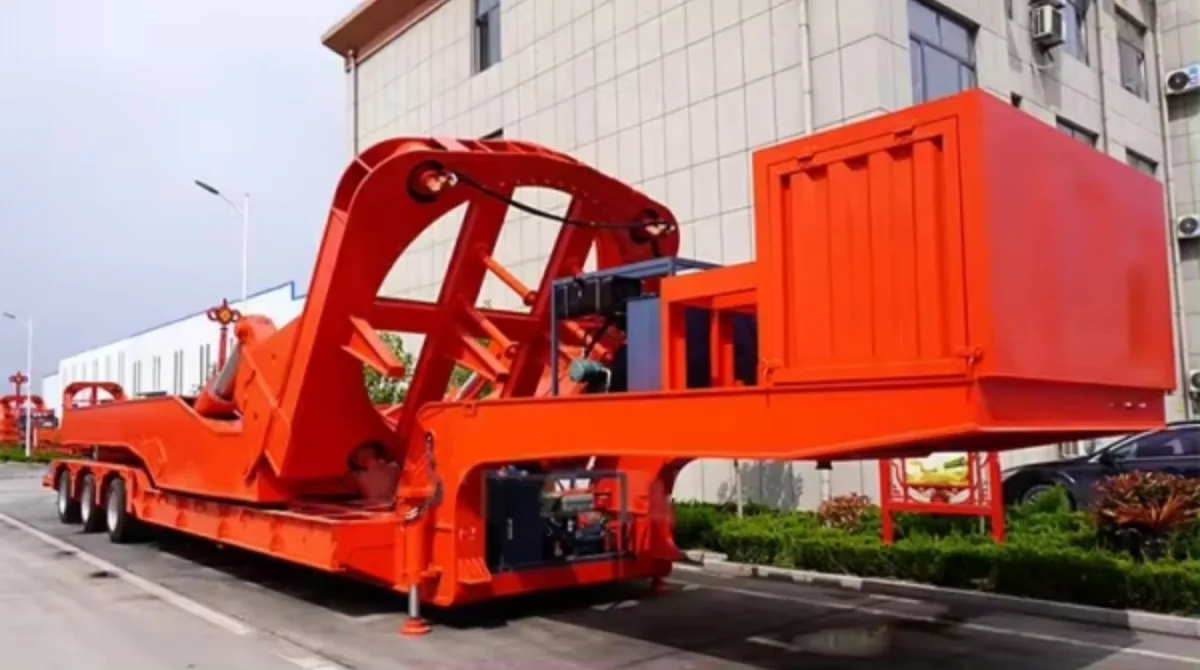

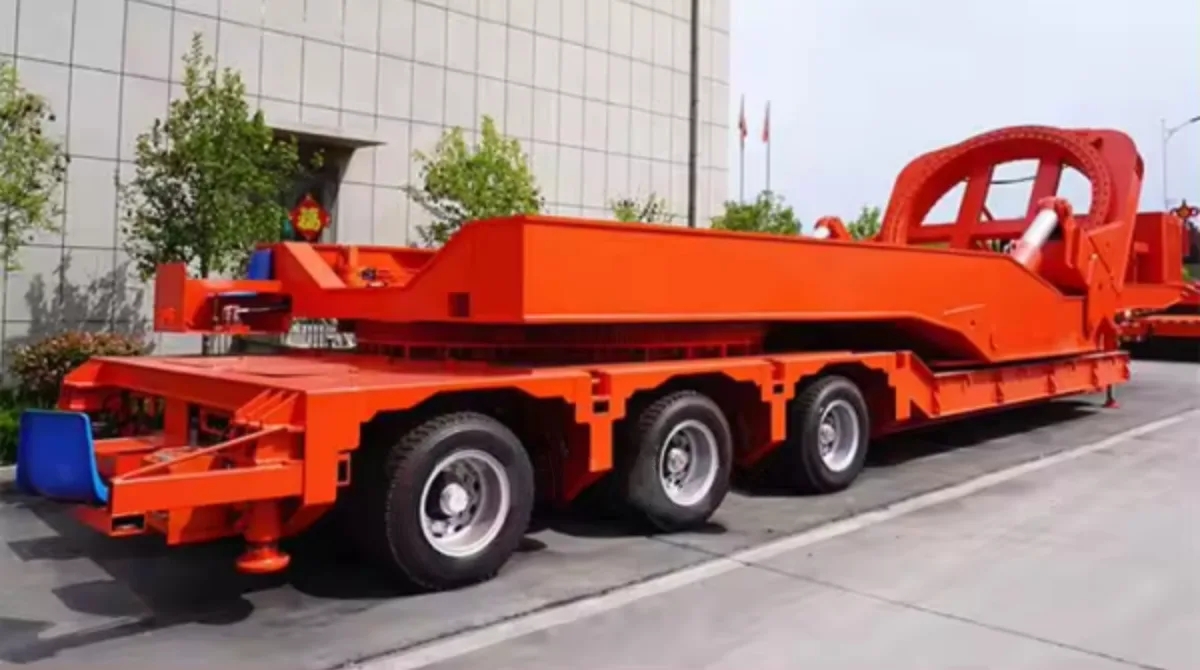

A wind blade adapter is a special trailer designed specifically for transporting wind turbine blades up and down hills.

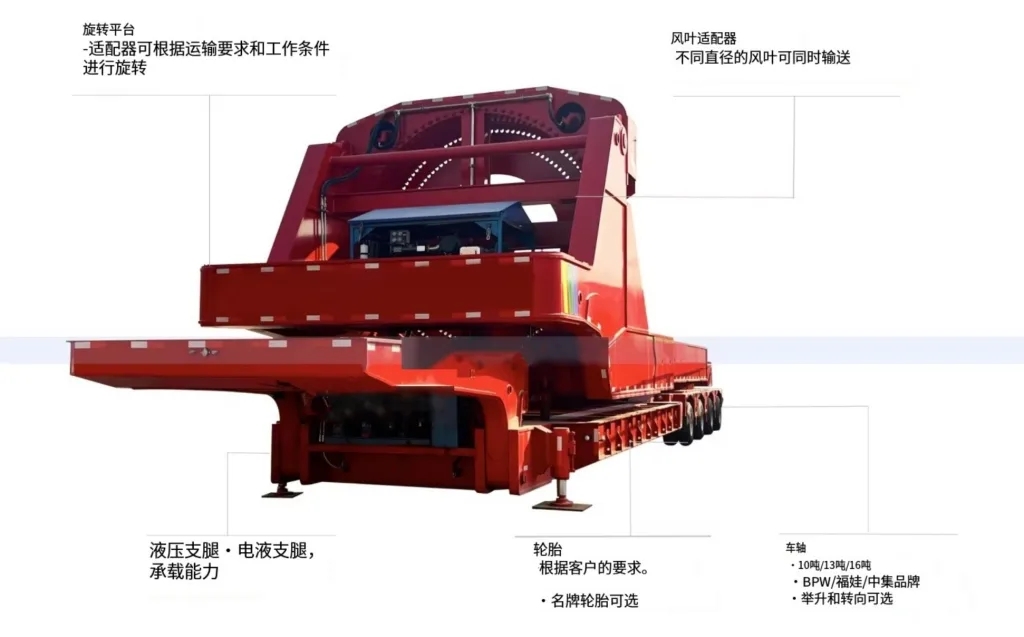

The wind blade adapter is a special trailer specially designed for transporting wind turbine blades on the mountain. The wind blade adapter consists of two parts: the upper part and the field part. The upper part can be customized with different conveying diameters according to the blades to be transported. The lifting and rotation of the blades can also be adjusted according to the road conditions and environment.
