/ 3 lines 6 axles windmill blade wind turbine tower trailer
3 lines 6 axles windmill blade wind turbine tower trailer
A wind blade adapter is a special trailer designed specifically for transporting wind turbine blades up and down hills.
Product Parameter
| Brand Name | LIONKAR |
| size | 13000mmx3000mmx3100mm, customizable |
| Material | Q960Q+Q345B |
| Load Capacity | 50-150 tons |
| axis | BPW/FUWA, 13 tons 16 tons, American shaft/German shaft |
| Trapezoidal plate type | 800mm, manual with spring assist (high-strength Q960 Q material) |
| Substrate | 8mm Q345B |
| tire | 8.25R20/11.00R20/12R22.5 |
| Traction pin | 50#(2″)/90#(3.5″) JOST/Other brands |
| suspension | Mechanical/pneumatic suspension system |
| Braking system | WABCO valve |
| light | led |
| Outriggers | 28 tons JOST/other brands |
| Rim | 9.00-22.5 |
| ABS | Optional |
| Electrical System | 24V 7-way |
| Accessories | 1. A tool box 2. A set of standard trailer tools |
Product Introduction

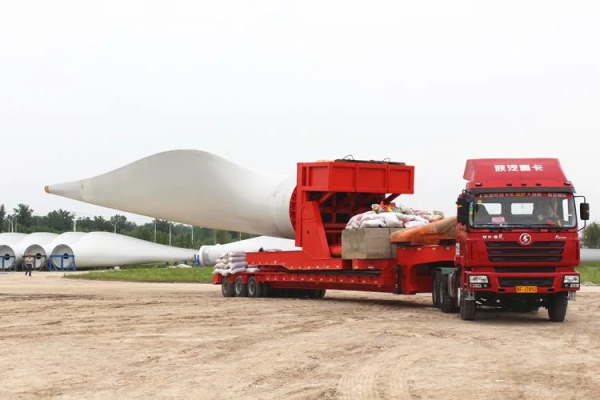

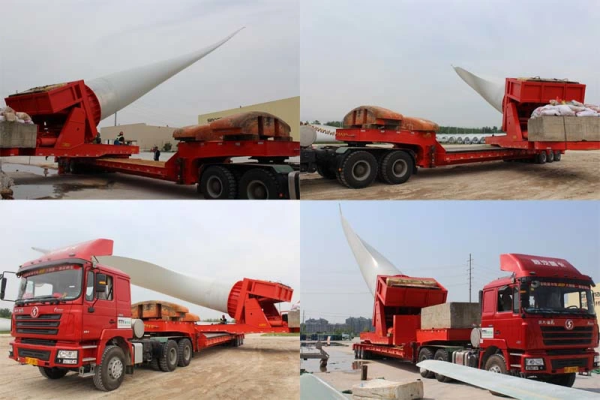

A wind blade adapter is a special trailer designed specifically for transporting wind turbine blades up and down hills.

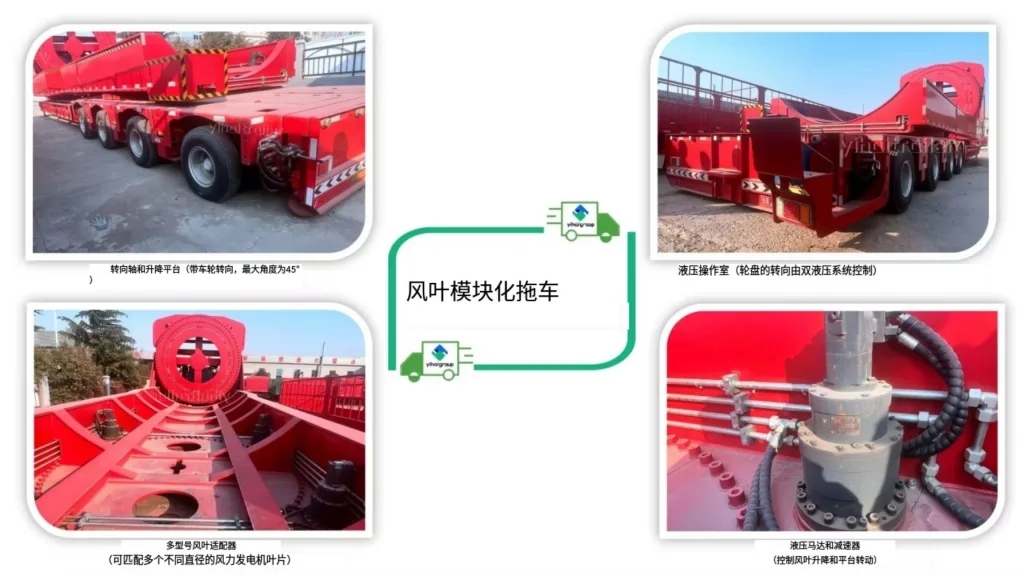

The wind blade adapter is a special trailer specially designed for transporting wind turbine blades on the mountain. The wind blade adapter consists of two parts: the upper part and the field part. The upper part can be customized with different conveying diameters according to the blades to be transported. The lifting and rotation of the blades can also be adjusted according to the road conditions and environment.
Product Components
