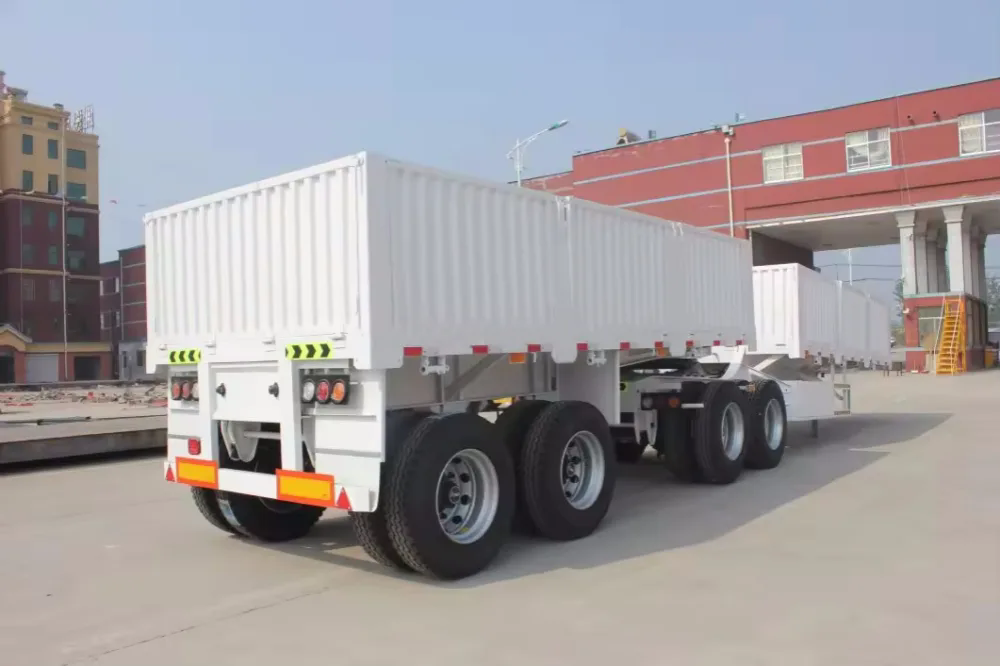

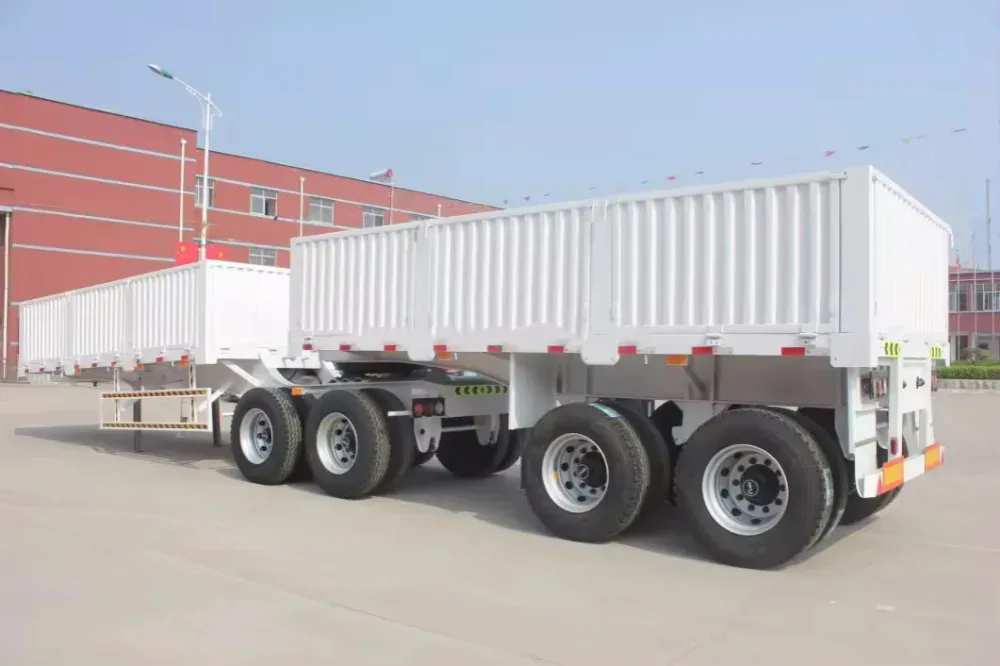

70t 20ft 40ft trolley container combined super link semi trailer
Compared with traditional dump trucks, the super-linked dump trailer/interconnected dump trailer/interconnected side dump trailer have obvious advantages in loading capacity, driving stability, unloading efficiency, etc., bringing better economic and social benefits to customers. Its main application areas include bulk material transportation, such as asphalt, sand and gravel, coal, grain, etc.
Product Parameter
| type | Semi-trailer |
| Maximum load | 80 tons |
| Origin | Shandong, China |
| use | Truck trailer |
| Material | Steel |
| size | 12500*2500*1550mm |
| Product Name | B-Double Hyperlink Sidewall Semi-trailer |
| Function | Transport of 20/40ft containers and heavy cargo |
| axis | 13 tons 14 tons 16 tons 18 tons BPW FUWA QUEST |
| suspension | Mechanical suspension/air suspension |
| Outriggers | Standard 28 tons |
| tire | 11.00r20 12r22.5 315 385 |
| Traction pin | 2″ (50 mm) or 3.5″ (90 mm) JOST |
| Side panel height | 600mm-1800mm |
| color | Customer optional |
Product Introduction
The Super Link Dump Trailer is a high-performance vehicle designed for complex logistics and transportation scenarios. It is fundamentally different from traditional dump trucks/semi-trailers. It can not only greatly shorten the unloading time and labor costs, but also provide more options for loading and unloading of goods. This Super Link Dump Trailer is equipped with an advanced hydraulic dumping mechanism and an intelligent control system. The hydraulic lifting structure can realize the automatic tipping of the carriage during driving, making unloading convenient and efficient. At the same time, the bottom of the carriage is also equipped with multiple lifting structures, and the lifting cylinders are arranged at multiple points along the longitudinal center of the semi-trailer to form a direct-push lifting mechanism, which further improves the working efficiency and stability of the vehicle.
Product Components
