Sulfuric acid corrosive goods tank transport semi-trailer concentrated sulfuric acid chemical tanker fuel tanker

Sulfuric acid tank transport semi-trailer adopts special materials and structural design to ensure safety during storage and transportation. The body is made of corrosion-resistant materials such as stainless steel and fiberglass, which can effectively resist the corrosion of sulfuric acid and reduce the risk of leakage and accidents.

Get A Free Quote Now

Product Parameter

Product NameDangerous goods transport semi-trailer
Vehicle modelMZC9402GFW
Vehicle size (mm)10500×2500×3700
Tank volume25.8m³
Total mass40000kg
Rated mass31800,32500kg
Tank shapeOval, round
MaterialStainless steel, aluminum alloy, carbon steel
Number of axes3
Wheelbase4770+1310+1310mm
Axle load-/24000(three-axis group)
Fuel Typediesel fuel
Tire specifications12R22.5 12PR
Loading mediumEight types of corrosive substances including sulfuric acid, hydrochloric acid, sodium hydroxide, sodium hypochlorite, acetic acid solution, phosphoric acid solution, etc.

Product Introduction

Sulfuric acid tank transport semi-trailer adopts special materials and structural design to ensure safety during storage and transportation. The body is made of corrosion-resistant materials such as stainless steel and fiberglass, which can effectively resist the corrosion of sulfuric acid and reduce the risk of leakage and accidents.

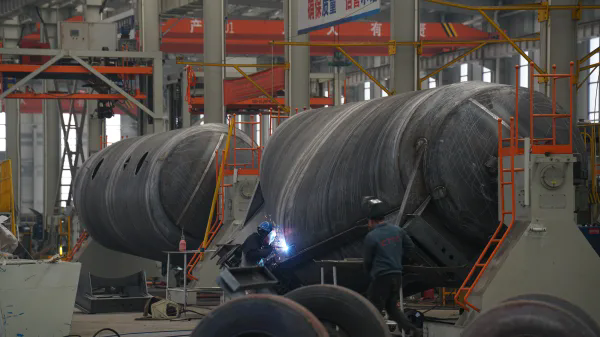

The tank semi-trailer transports hydrochloric acid, sulfuric acid and other anti-corrosive liquids. The tank body is anti-corrosive. To ensure the safety of the tank truck, we have built-in wave-breaking plates inside the tank body, explosion-proof manhole covers and emergency cut-off devices installed on the body. At the same time, partition boards can be installed inside the tank body to divide the tank body into multiple small warehouses, and each tank warehouse can be loaded and unloaded independently. We have introduced advanced production equipment to achieve low cost and high quality, and survive by quality. At the same time, our company has introduced excellent testing equipment to ensure that product testing is correct. The product is excellent. The tank body is formed in one go, is pressure-resistant and explosion-proof, and uses German automatic seamless welding technology, with good sealing and beautiful welding points.

The head adopts water pressure technology, which has stronger pressure-bearing and sealing effect: the head processing method adopts a flat plate formed by water pressure and then CNC cutting and edge spinning; it can have greater pressure-bearing capacity and stronger sealing effect.

Product Components
