3 axle 20ft 40ft container semi trailer skeleton chassis semi trailer
This product is specially used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength. By using containers to transport goods, it can be loaded directly at the shipper’s warehouse and unloaded at the consignee’s warehouse. When changing vehicles or ships midway, there is no need to take the goods out of the container for replacement. This container semi-trailer can be loaded and unloaded quickly, and can be easily transferred from one means of transportation to another. It is widely used because of its flexibility and convenience.
Get A Free Quote NowProduct Parameter
| project | Specification |
| Product Name | Container chassis skeleton semi-trailer |
| Overall size (mm) | 12500x2500x1550mm (customizable) |
| Loading capacity (tons) | ≤60T |
| Origin | Shandong |
| use | Truck trailer |
| Material | steel |
| size | Customized according to customer needs |

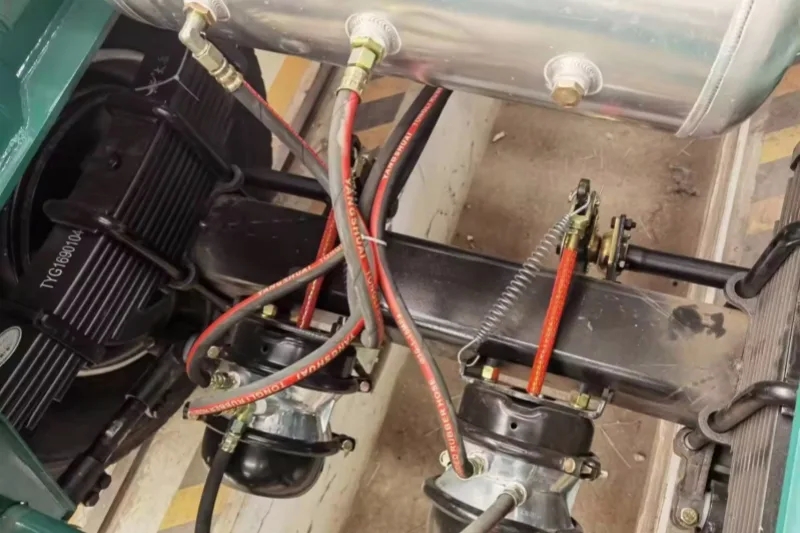

| Suspension | Mechanical/pneumatic suspension system |
| Function | Shipping 20ft and 40ft containers |
| color | Customized colors |
| Support leg | JOST |
| Number of axes | 2/3/4 axis |
| Lock | 4, 8, 12 sets (lifting or spiral) |
Product Introduction
This product is specially used for the transportation of various containers. It can be used repeatedly for a long time and has sufficient strength. By using containers to transport goods, it can be loaded directly at the shipper’s warehouse and unloaded at the consignee’s warehouse. When changing vehicles or ships midway, there is no need to take the goods out of the container for replacement. This container semi-trailer can be loaded and unloaded quickly, and can be easily transferred from one means of transportation to another. It is widely used because of its flexibility and convenience.
Skeleton semi-trailers are specially used to transport containers. When the container is hoisted onto the skeleton trailer, a twist lock is installed on the skeleton, and the corner hole at the bottom of the container will fall exactly on the position of the twist lock. Turning the handle of the twist lock can lock the container and the skeleton trailer. The whole vehicle adopts domestically advanced super-strong 700 steel, which effectively extends the service life of the trailer. The trailer is light in weight and high in strength. It can also save fuel consumption and prevent the box from deformation and other potential problems during loading.
Product Components
