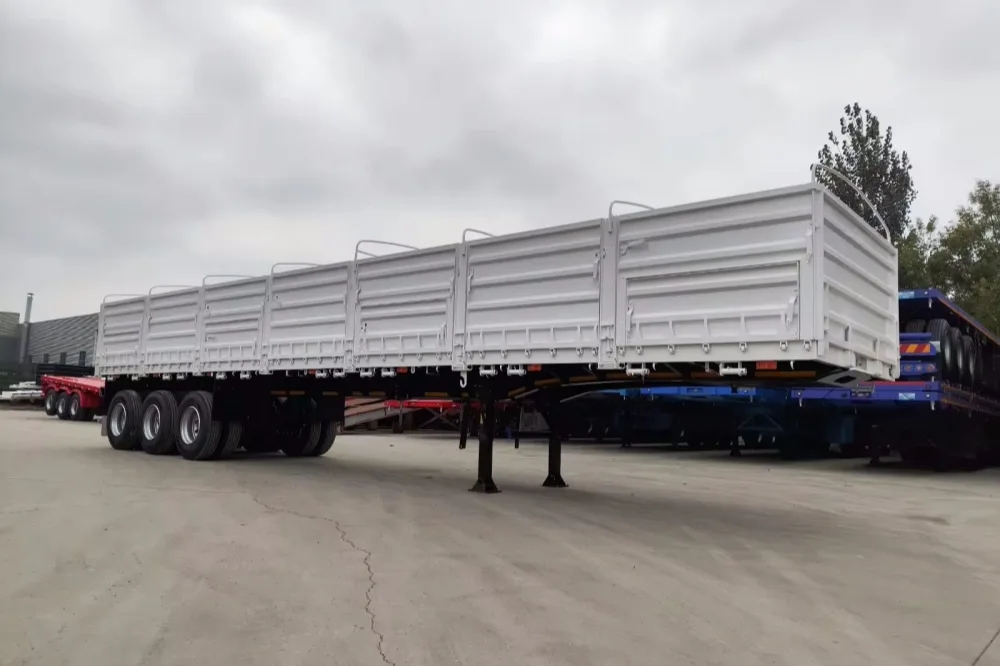

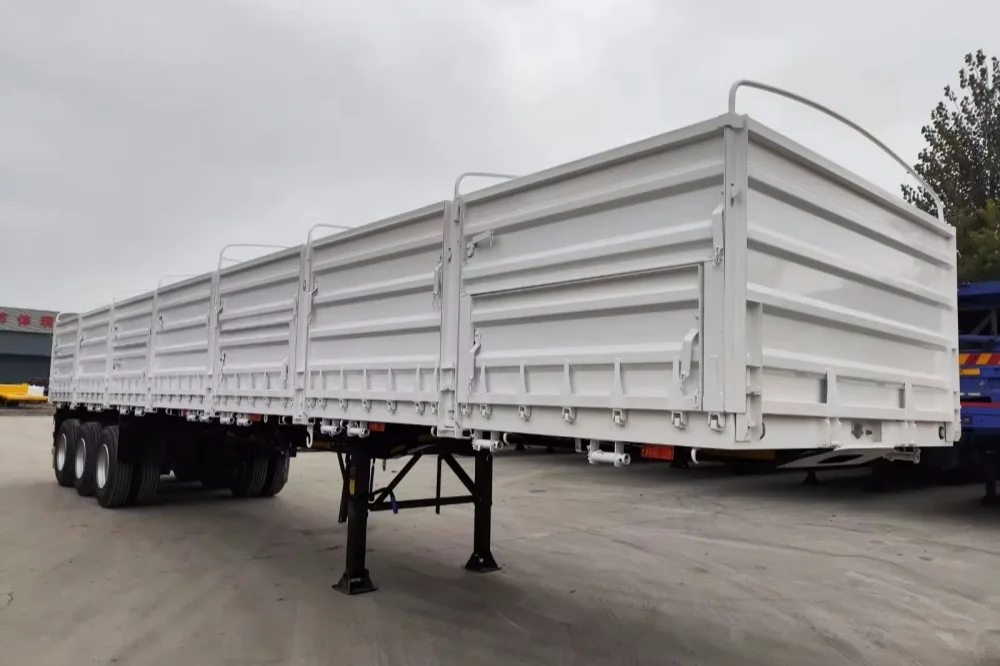

3 axle 60T drop side wall semi trailer truck side semi trailer
The body is made of high-quality steel, with advanced technology and strict production. The vehicle has a reasonable structure, reliable performance, convenient operation and beautiful appearance. The frames of this series of semi-trailers are all through-beam structures, and the longitudinal beams are straight beams or gooseneck beams. The web height ranges from 400mm to 550mm, with welded manganese plates, the longitudinal beams are welded by automatic buried welding, the frame is shot peened, the cross beams penetrate the longitudinal beams, and the whole is welded.
Get A Free Quote NowProduct Parameter
| project | describe |
| type | 3-axle drop sidewall semi-trailer |
| Loading weight | 40000kg |
| Origin | Shandong |
| use | Truck trailer |
| Material | steel |
| size | 13600*3800*4000 mm |
| Container Twist Lock | 12 |
| suspension | Mechanical/air suspension |
| Axle system | Changda/BPW/FUWA |
| tire | Customizable |
| Outriggers | JOST/FUWA |
| color | Customizable |
| use | Truck trailer |
| Main beam | Height: 450~550 mm. Upper plate is 14 mm, lower plate is 16 mm, middle plate is 8 mm |
| Traction pin | 90 mm |
| Package | Waxing before shipment |
Product Introduction
Sidewall semi-trailers are widely used, mainly for medium and long-distance transportation of medium and heavy-duty and bulk goods. They are highly adaptable and have become the first choice for medium and long-distance freight vehicles.
The body is made of high-quality steel, with advanced technology and strict production. The vehicle has a reasonable structure, reliable performance, convenient operation and beautiful appearance. The frames of this series of semi-trailers are all through-beam structures, and the longitudinal beams are straight beams or gooseneck beams. The web height ranges from 400mm to 550mm, with welded manganese plates, the longitudinal beams are welded by automatic buried welding, the frame is shot peened, the cross beams penetrate the longitudinal beams, and the whole is welded.
Product Components
