Factory price side dump trailer dump truck 3 axle dump semi trailer interconnected trailer for sale
Side dump semi-trailers are mainly used for the transportation of bulk goods such as earthwork, ore, and building materials. The hydraulic dump system is used to achieve self-unloading, saving time and effort. The side dump semi-trailer can unload through the base of the box. This special design is for heavy vehicles, and it can ensure safety during unloading.
Get A Free Quote NowProduct Parameter
| size | External 13m*2.5m*3.7m (customizable) |
| Braking system | Dual-line brake system, ABS optional |
| Load capacity | 20 to 150 tons (customizable) |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 spring brake chamber (TKL brand); two 45L gas tanks |
| Warehouse capacity | 20 to 70 cubic meters (customizable) |
| Electrical System | 24V, 7-pin socket, lamps that meet European standards |
| Tilt Angle | 45-50 degrees |
| Traction pin | 2.00 or 3.5 inch bolt-on kingpin |
| Brand Name | LIONKAR |
| Suspension | Mechanical suspension/air suspension optional |
| Main beam | Material: Q345B Carbon Steel “H” Beam |
| Spring | 100(W)mm×16(Thickness)mm×12 layers |
| Side beam | Material: Q235 steel; 16mm or 25mm steel channel |
| tire | 12R22.5, (13R22.5, 11.00R20, 12.00R20, 315/80R22.5, 385/65R22.5 can be customized) |
| Frame floor | 6mm Diamond Steel Plate |
| Spare tire rack | 1 or 2 |
| axis | 2/3/4/5 axis, 13/16/20 tons HYS/FUWA/BPW brand (customizable) |
| color | Yellow/red/white/blue (customizable) |
| Support leg | HYS / JOST brand 28 tons load capacity |
| appendix | A standard tool box |
Product Introduction

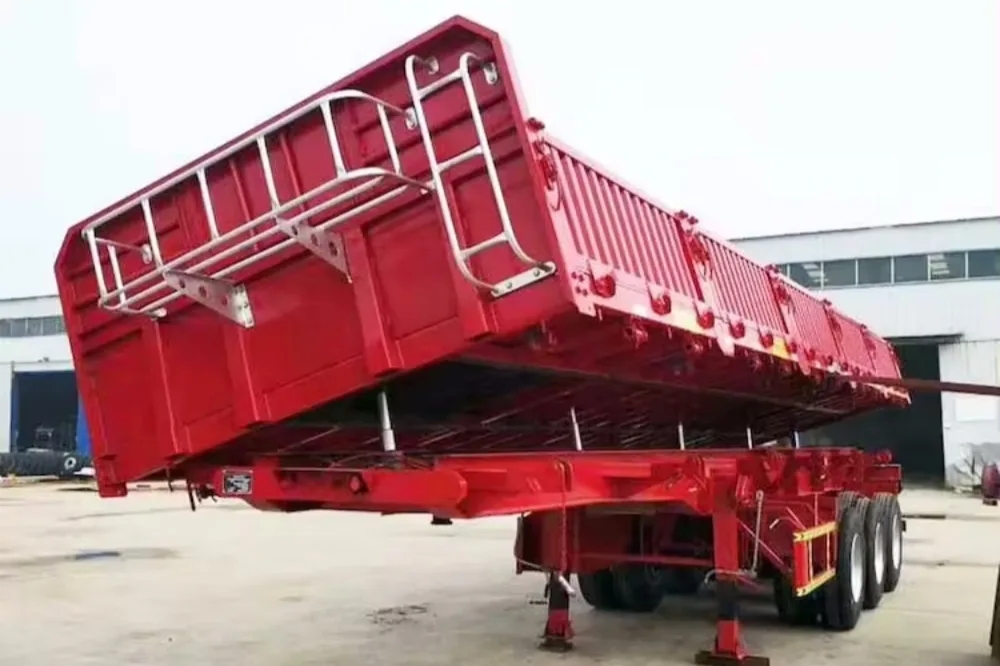

This product has a side dump function, which can easily unload the goods. It is suitable for occasions where frequent loading and unloading of goods is required. The vehicle is designed to be sturdy and durable, and can safely transport goods under various road conditions. It is an efficient means of transportation.
Side dump semi-trailers are mainly used for the transportation of bulk goods such as earthwork, ore, and building materials. The hydraulic dump system is used to achieve self-unloading, saving time and effort. The side dump semi-trailer can unload through the base of the box. This special design is for heavy vehicles, and it can ensure safety during unloading.
The side-unloading semi-trailer is a semi-trailer suitable for transporting bulk cargo. Its unique structure allows the cargo to be dumped directly from the side when loading, without moving through the main cargo box. In addition, the side-unloading semi-trailer has a strong carrying capacity and can adapt to the transportation needs of super-heavy items. At the same time, during transportation, the cargo can be dumped from the side, which not only makes the loading and unloading process more efficient, but also effectively prevents sliding, thereby ensuring transportation safety. In addition, the side-unloading semi-trailer adapts to the trend of road-rail intermodal transport and road-water intermodal transport, and is a multi-purpose transport vehicle. Its side-unloading function can easily adapt to different types of cargo transportation, reducing the company’s transportation costs and giving the product a greater advantage in market competition. The flexibility and stability of the side-unloading semi-trailer when reversing have brought it great convenience and competitiveness in cargo transportation.
Product Components
