4-line 100t hydraulic system modular semi-trailer
Modular semi-trailers are often used to transport heavy trucks, rail vehicles, mining machinery, forestry machinery, agricultural machinery such as excavators, bulldozers, loaders, pavers, cranes, etc. The lower the center of gravity of the cargo, the better the stability and safety of the cargo, and the stronger the ability to transport extra-high cargo and cross overhead obstacles. Flatbed semi-trailers usually adopt concave beam frames. It provides users with efficient, safe and reliable cargo transportation solutions.
Product Parameter
| project | describe | project | describe |
| Model | Hydraulic Steering Modular Trailer | Main beam | 50mm upper, 60mm lower, double 16mm in the middle |
| Function | Transporting heavy objects | Overall dimensions (length x width x height) (mm) | 18000×2990×1080(±290) Cargo flatbed dimensions (13500×2990×1080) |
| Steel material | Q550 | Approach angle/departure angle | 30/30 |
| Axle Brand | 11.5 ton axle JULIN brand | Load | 184000-200000 KG |
| Wheelbase(mm) | 1550 | Number of axes | 16 |
| Maximum turning radius of trailer | 42 | Suspension system | Hydraulic suspension |
| Rim | 6.0-15 | Tire type and number | Tire: 750R15 64pcs |
| Gooseneck type | Hydraulic removable gooseneck with 2100 engine and 10MCY14-1B pump | Maximum speed | 8 km/h |
| part | Simple tripod and a set of tow bars | Braking system | Dual-line brake system, no ABS |
| Brake chamber | 8 double rooms and 8 single rooms | Electrical System | 1. Voltage: 24v 2. Socket: 7-way (7-wire harness) |
| Side guard | 1. Tail light with turn signal, brake light and reflector, side light, etc. 2. One set of 6-core standard cable. 3. According to customer requirements |
Product Introduction
Modular semi-trailers are often used to transport heavy trucks, rail vehicles, mining machinery, forestry machinery, agricultural machinery such as excavators, bulldozers, loaders, pavers, cranes, etc. The lower the center of gravity of the cargo, the better the stability and safety of the cargo, and the stronger the ability to transport extra-high cargo and cross overhead obstacles. Flatbed semi-trailers usually adopt concave beam frames. It provides users with efficient, safe and reliable cargo transportation solutions.
The 150-ton hydraulic modular trailer is a product that integrates advanced technology, stable performance and excellent maneuverability. It is used to transport heavy goods. It has a low center of gravity, good load-bearing capacity, high safety factor, and a detachable gooseneck tube to facilitate cargo loading. The product also has excellent maneuverability and adaptability. Through flexible modular design, it can be adjusted according to the actual transportation mission requirements to adapt to various terrains and load requirements; at the same time, its advanced hydraulic system and large wheel set give it the load-bearing capacity of an ultra-long stacking bracket, which can realize long-distance cargo transportation.

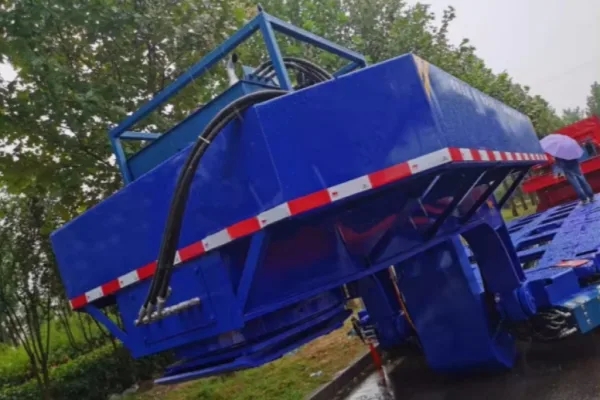

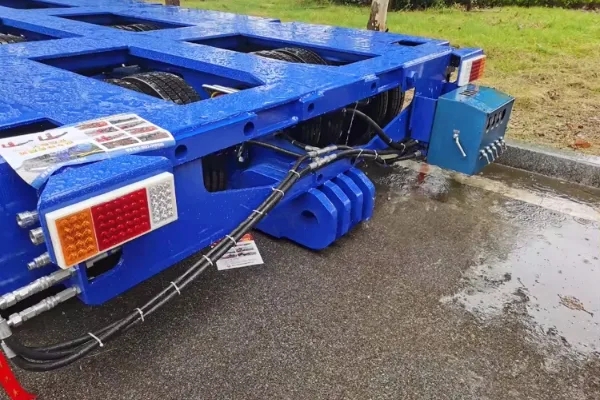

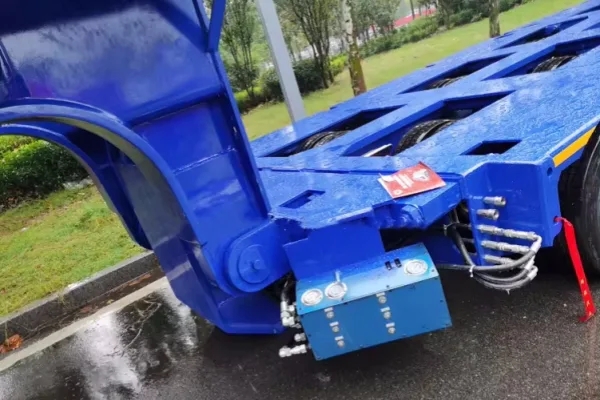

Product Components
