60t 3-axle retractable low bed trailer
Retractable low-bed trailers are widely used in engineering transportation and large equipment transportation due to their strong carrying capacity, high flexibility, safety and stability.
Product Parameter
| model | Low bed trailer | Load capacity | 60 t |
| Certification | ECE, GCC, CE, ISO9001, DOT, CCC, ISO/TS16949 | Wheelbase | 7000-8000mm |
| Wheelbase | 1820mm | grade | Heavy |
| Suspension system type | Mechanical/Pneumatic/Bogie Suspension | shape | Low Board |
| Number of axes | 3-axis 4-axis | Number of tires | custom made |
| Dumping | Non-self-unloading | ABS Anti-lock Braking System | Dual circuit braking system |
| Material | Steel | state | brand new |
| province | Shandong | Trailer Application | Excavator/Heavy Equipment Loading |
| Working platform height | Below 1 meter or above 1 meter | Tire type | Covered or uncovered tires |
| Trapezoidal plate type | Mechanical ladder or hydraulic ladder | Outrigger device | Jost brand two-speed outriggers |
| tire | 11.00r20/12r22.5/8.25r20 | Retractable device | 25 cm on each side |
| length | 13m, 16m | Load capacity | 30 tons, 40 tons, 50 tons, 60 tons, 80 tons, 100 tons |
| Traction pin | 2″, 3.5″, Jost | Axis brand | 13 ton BPW/Fuwa brand shaft |
| Leaf spring | 90(W)mm*13/16 (Thickness)mm*10(Layers) | Rim | 9.00-22.5 |
| Outriggers | Jost/Fuwa/Yahua brand 28 tons | Transport packaging | Bulk packaging and bulk shipping |
| Specification | 13000mm*3000mm*1700mm, customizable | trademark | Vehicle Master |
| Origin | China | Production Capacity | 500 units per month |
Product Introduction
Retractable low-bed trailers are widely used in engineering transportation and large equipment transportation due to their strong carrying capacity, high flexibility, safety and stability.

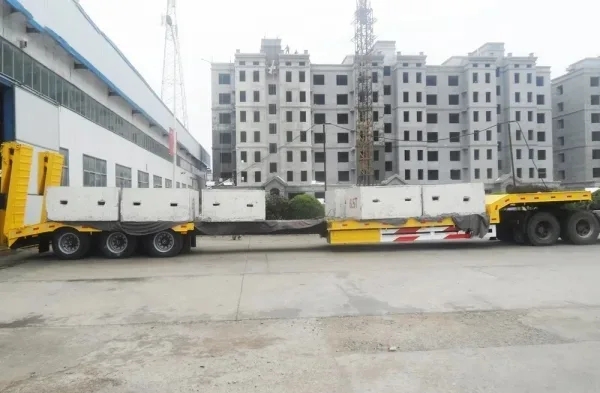

The retractable trailer is a special purpose trailer. It has a specially designed retractable main beam structure. The standard main beam is about 12m, with the extension function, the main beam can reach more than 17m. It is usually used to transport wind blades, some long items, etc. It can also be used as an ordinary flatbed trailer or cargo trailer for container transportation or cargo transportation.
Product Components
