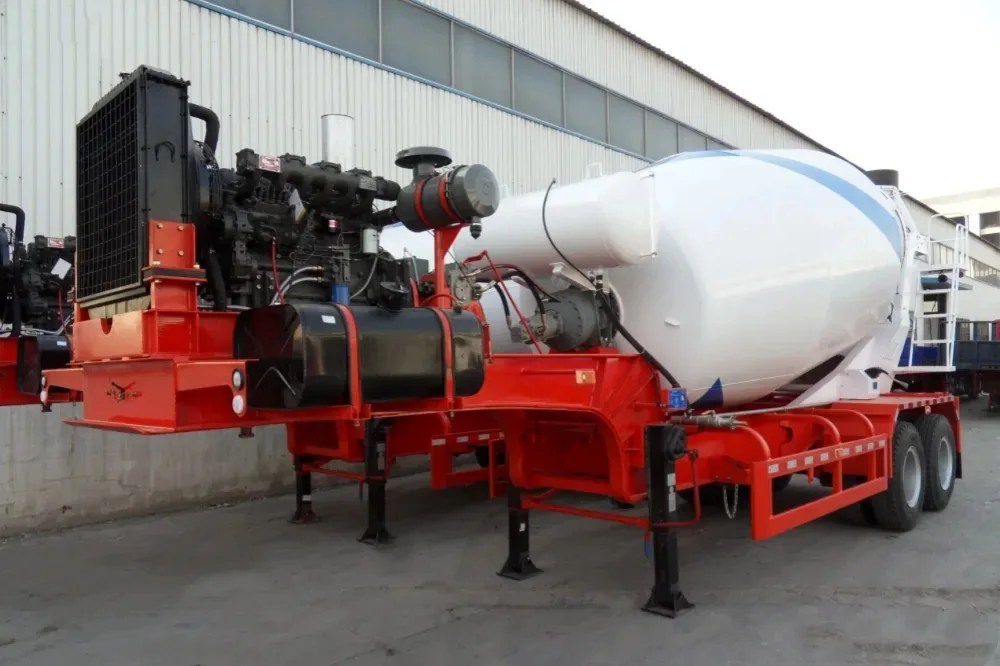

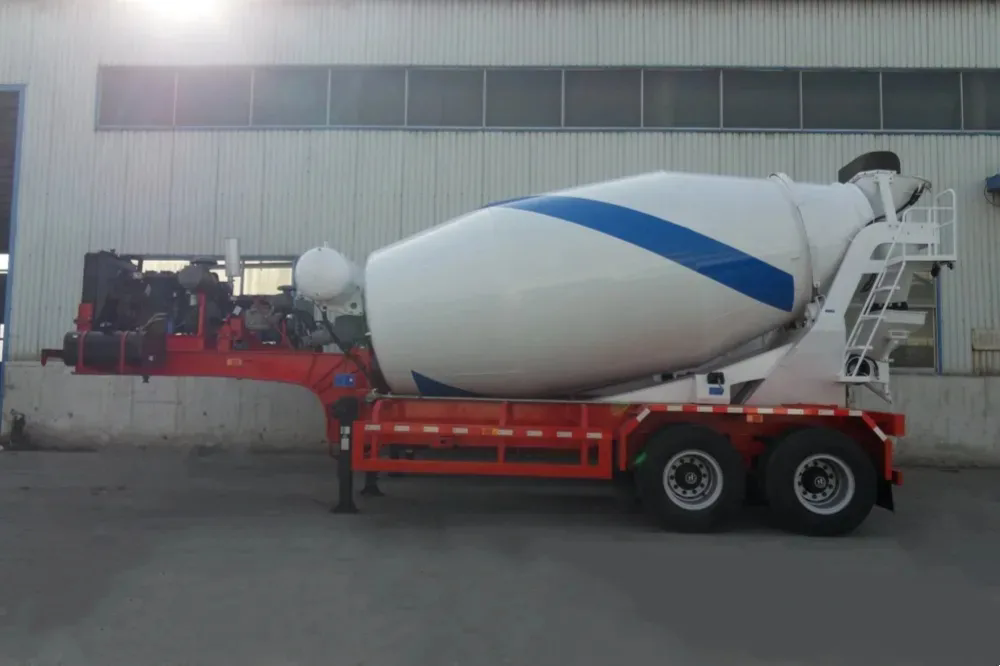

Construction concrete mixer cement truck
Concrete mixer trucks have the advantages of uniform mixing, convenient transportation, and high work efficiency. They can meet the needs of on-site concrete mixing and transportation and improve project construction efficiency.
Get A Free Quote NowProduct Parameter
| Overall dimensions | 9780mm*2496mm*3990mm(Length*Width*Height) |
| Deadweight | 13950kg |
| Payload | 35000kg |
| Front overhang | 1500mm |
| Rear Overhang | 2880mm |
| Wheelbase | 4000mm+1400mm |
| Wheelbase (front/rear) | 2022mm/1830mm |
| Chassis | |
| Chassis brand | SINOTRUK HOWO |
| Chassis model | ZZ1257N4048W，Drive type 6×4 |
| Cab | HW76，Left-hand drive, air conditioning, one bed |
| engine | SINOTRUK WD615.47，371Horsepower (273 kW), Euro II emission standard, 4-stroke direct injection diesel engine, 6 cylinders in-line, water-cooled, turbocharged and intercooled, displacement 9.726 liters |
| Gearbox | HW19710，Speed number: 10 front and 2 rear |
| Steering | Germany ZF8098, steering system pressure 18MPa |
| Rear axle | HC16 double axle, rated load 2×13 tons, speed ratio 5.73 |
| Tires and wheels | Wheel 9.0-22.5; Tire 12R22.5, 10 pieces; Spare tire rack: with one spare tire |
| brake | Service brake: dual circuit air pressure brake; Parking brake: spring energy, rear wheel compressed air operation; Auxiliary brake: engine exhaust brake |
Product Introduction
Concrete mixer trucks have the advantages of uniform mixing, convenient transportation, and high work efficiency. They can meet the needs of on-site concrete mixing and transportation and improve project construction efficiency.
Product Components
