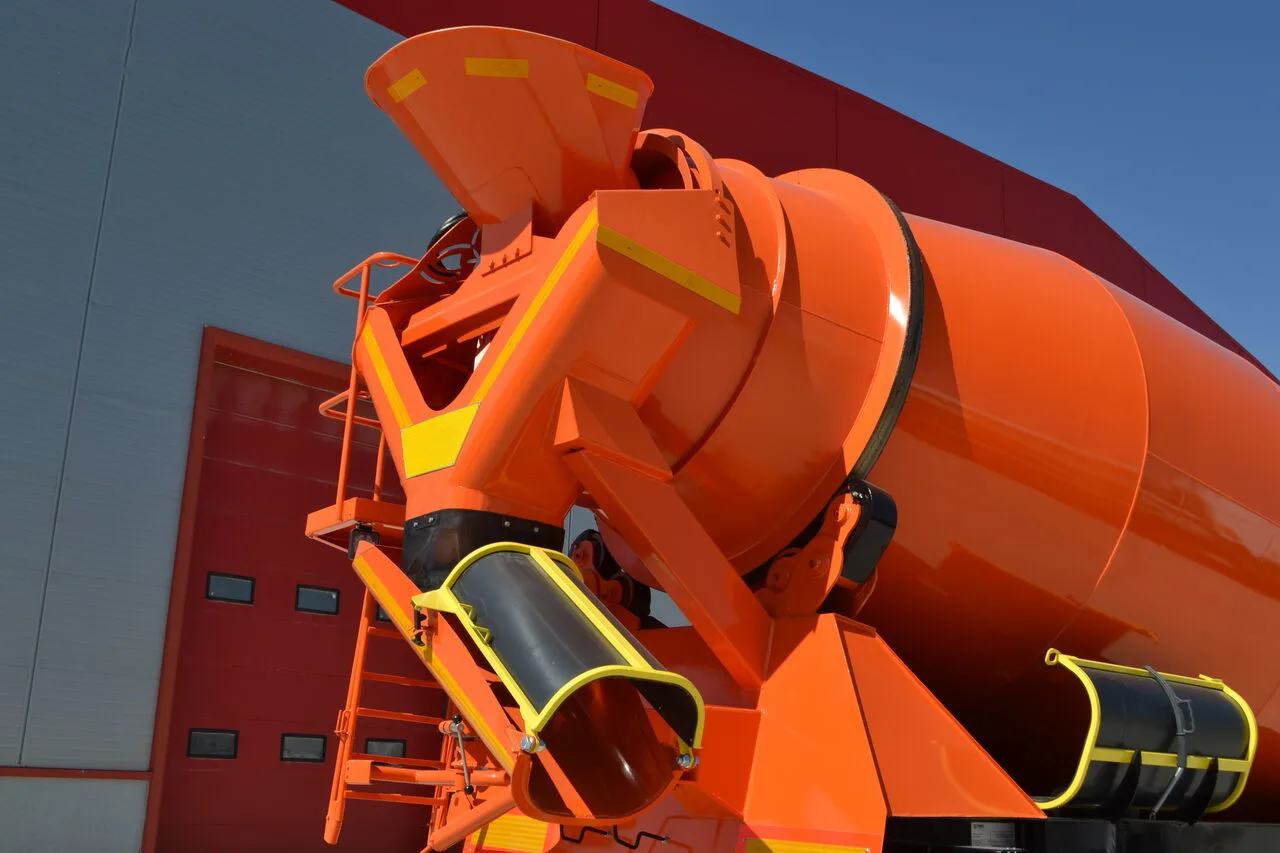

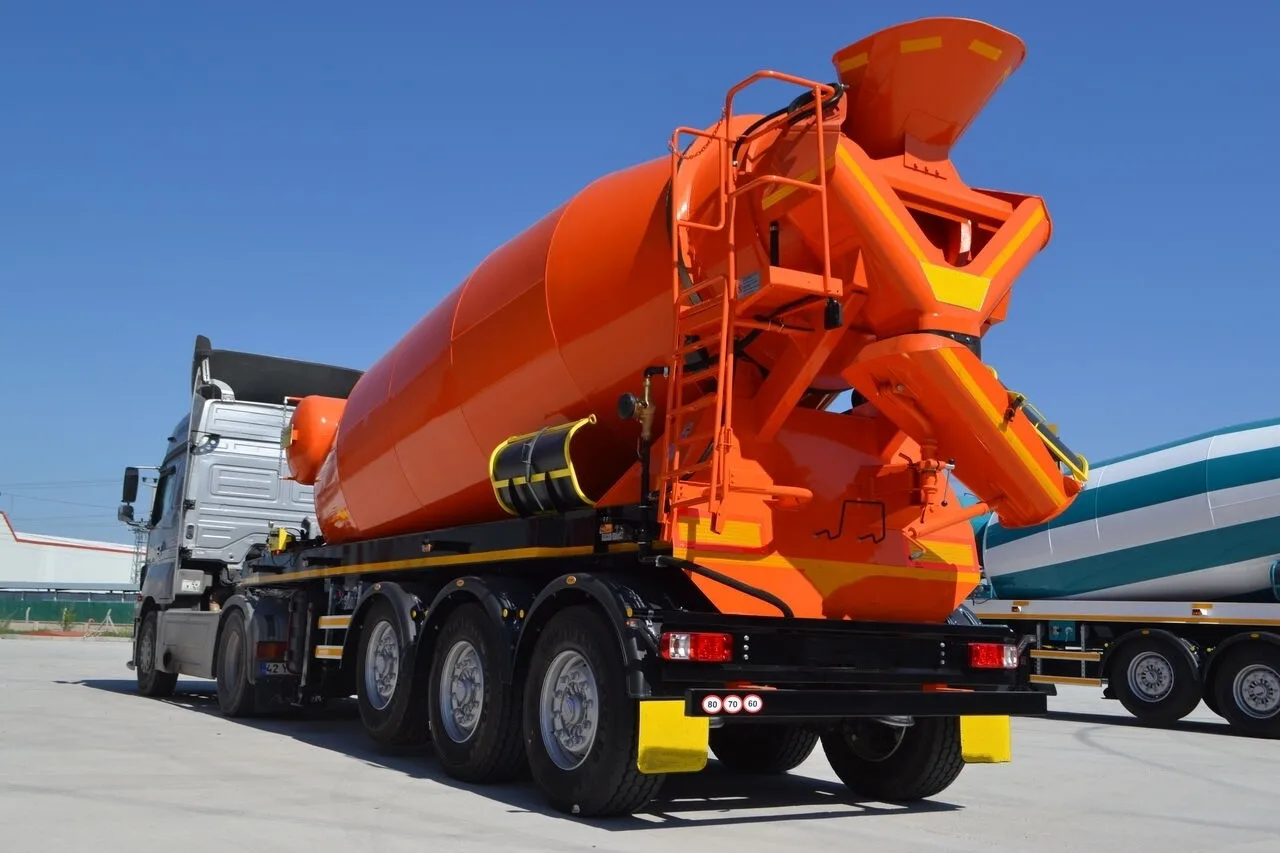

5.5m³ concrete mixer
Concrete mixer trucks have the advantages of uniform mixing, convenient transportation, and high work efficiency. They can meet the needs of on-site concrete mixing and transportation and improve project construction efficiency.
Construction concrete mixer trucks, also known as cement mixer trucks, are mainly used for on-site concrete mixing and transportation, and are widely used in construction sites, highway construction, bridge engineering and other fields. Concrete mixer trucks have the advantages of uniform mixing, convenient transportation, and high work efficiency. They can meet the needs of on-site concrete mixing and transportation and improve engineering construction efficiency.
Get A Free Quote NowProduct Parameter
| Overall dimensions | 9780mm*2496mm*3990mm(Length*Width*Height) |
| Deadweight | 13950kg |
| Payload | 35000kg |
| Front overhang | 1500mm |
| Rear Overhang | 2880mm |
| Wheelbase | 4000mm+1400mm |
| Wheelbase (front/rear) | 2022mm/1830mm |
| Chassis | |
| Chassis brand | SINOTRUK HOWO |
| Chassis model | ZZ1257N4048W，Drive type 6×4 |
| Cab | HW76，Left-hand drive, air conditioning, one bed |
| engine | SINOTRUK WD615.47，371Horsepower (273 kW), Euro II emission standard, 4-stroke direct injection diesel engine, 6 cylinders in-line, water-cooled, turbocharged and intercooled, displacement 9.726 liters |
| Gearbox | HW19710，Speed number: 10 front and 2 rear |
| Steering | Germany ZF8098, steering system pressure 18MPa |
| Rear axle | HC16 double axle, rated load 2×13 tons, speed ratio 5.73 |
| Tires and wheels | Wheel 9.0-22.5; Tire 12R22.5, 10 pieces; Spare tire rack: with one spare tire |
| brake | Service brake: dual circuit air pressure brake; Parking brake: spring energy, rear wheel compressed air operation; Auxiliary brake: engine exhaust brake |
Product Introduction
Concrete mixer trucks have the advantages of uniform mixing, convenient transportation, and high work efficiency. They can meet the needs of on-site concrete mixing and transportation and improve project construction efficiency.
Construction concrete mixer trucks, also known as cement mixer trucks, are mainly used for on-site concrete mixing and transportation, and are widely used in construction sites, highway construction, bridge engineering and other fields. Concrete mixer trucks have the advantages of uniform mixing, convenient transportation, and high work efficiency. They can meet the needs of on-site concrete mixing and transportation and improve engineering construction efficiency.
Product Components
