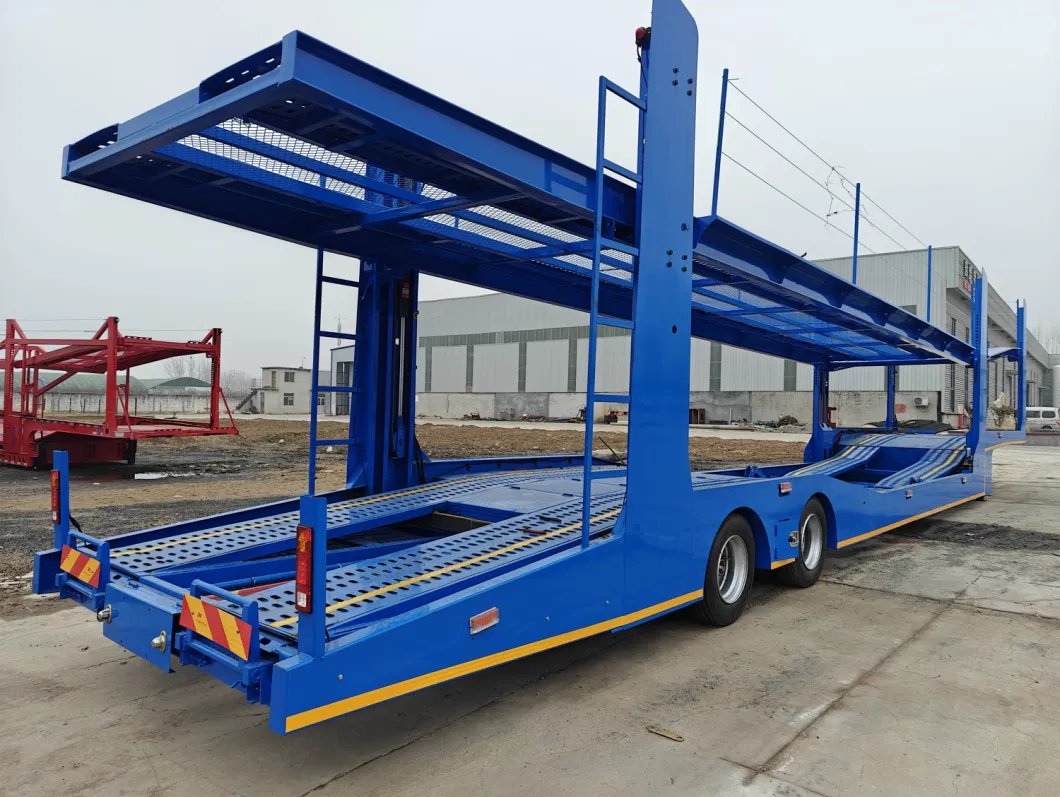

Three-axle double-decker car transporter
A car transport trailer is a trailer specially designed for transporting multiple cars. It has a main beam made of high-strength steel and a standard mechanical suspension system, equipped with multiple axles and tires to support and transport multiple vehicles.
Get A Free Quote NowProduct Parameter
| Vehicle carrying capacity | 10 – 12 cars |
| Overall dimensions | 20000×2600×4200mm (length x width x height) |
| Axis brand | 13T×3pcs |
| Number of axes | three |
| Axis load | 13000kg x 3 |
| Suspension | Standard mechanical suspension |
| Main beam material | T700 high strength steel, beam height 500mm, top 10mm, middle 6mm, bottom 12mm |
| Tire type and number | Chinese brand tires 12R22.5, 6 pieces |
| Rim | 9.0×22.5 |
| Traction pin | 2 inches, diameter 50.8mm, load 16 tons |
| Toolbox | 1 standard |
| Outriggers | Standard 28 tons |
| Electrical System | 1. Voltage: 24v 2. Socket: 7-way (7-wire harness) 3. Tail lights with turn signals, brake lights and reflectors, side lights, etc. 4. A set of 6-core standard cables |
| color | According to customer requirements |
| Package | Polishing and waxing before shipment |
| Precautions | 1. The top platform can be adjusted up and down by hydraulic cylinders and chain blocks, each trailer has 4 cylinders 2. The top of the trailer can be lowered by approximately 20 cm and can be manually controlled when passing through height-restricted areas such as bridges |
Product Introduction
The car transporter can be made into different lengths according to customer requirements. The frame is welded I-beam, and the entire body is welded by automatic submerged arc welding and carbon dioxide gas shielded welding. After welding, shot blasting is carried out to eliminate welding stress and improve the adhesion of the paint surface, making the quality stable and the appearance beautiful. The vehicle is equipped with a tool box, spare tire rack, and drip brake system to improve the safety of vehicle transportation.
Automobile transport refers to vehicles specially used for transporting automobiles, most of which adopt low-bed design, with the characteristics of stable lifting, low center of gravity, good driving stability, etc. The vehicle can generally be divided into three types: skeleton type, fully enclosed type and semi-enclosed type.
